Buttweld Fittings
Buttweld Fittings are essential components used to change the direction, branch, or diameter of piping systems in a permanent, welded manner. Manufactured from seamless or welded pipes, these fittings are preferred for high-pressure and high-temperature applications in industries like oil & gas, petrochemical, power generation, and shipbuilding. They ensure smooth fluid flow, minimal pressure drop, and superior mechanic
- Smooth internal surface ensures low pressure drop
- Permanent and high-strength welded joints
- Available in wide range of sizes and schedules
- Manufactured to global standards (ASME, DIN, EN)
- Ideal for high-pressure and high-temperature pipelines
Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel (304/316/321), Carbon Steel (A234 WPB), Alloy Steel, Duplex, Hastelloy |

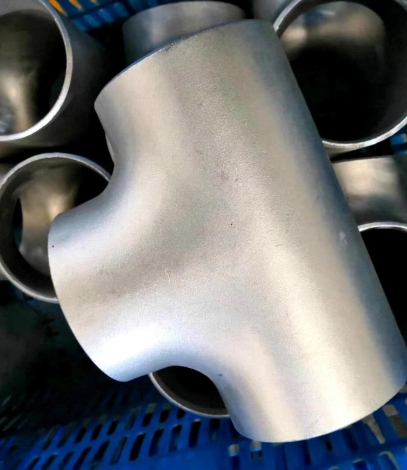

| Types | Elbows (90°, 45°, Long/Short Radius), Tees, Reducers (Concentric, Eccentric), Caps, Crosses, Stub Ends |
| Size Range | ½" to 72" (DN15 to DN1800) |
| Schedule (Wall Thickness) | SCH 10, 20, 40, 60, 80, 160, XXS |
| End Connection | Beveled Ends (BE) as per ASME B16.25 |
| Standards | ASME B16.9, ASTM A403, A234, MSS SP-43, EN 10253, DIN 2605 |
| Manufacturing Method | Seamless, Welded, Hot Formed, Cold Formed |
| Applications | Refineries, Power Plants, Offshore Projects, Chemical & Fertilizer Plants, Water Pipelines |
Physical Properties
| Property | Typical Value | Unit |
|---|---|---|
| Density | 7.85 (Carbon Steel), 8.0 (Stainless Steel) | g/cm³ |
| Tensile Strength | 450 – 750 | MPa |
| Yield Strength | 240 – 500 | MPa |
| Hardness | 120 – 250 | HB |
| Operating Temperature | -46 to +600 | °C |
| Corrosion Resistance | Good to Excellent (based on grade) | - |
