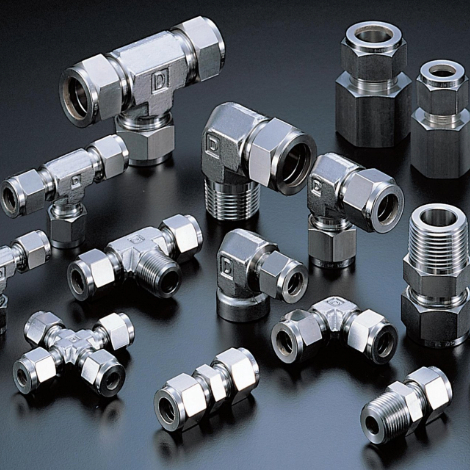

Instrumentation Fitting
Our Instrumentation Fittings are engineered for precise control and secure connections in critical applications such as oil & gas, chemical processing, power generation, and pharmaceuticals. These fittings are manufactured from high-grade materials with tight tolerances to ensure leak-proof performance, durability, and corrosion resistance. They are available in a variety of sizes, end connections, and configurations to meet international standards and project requirements.
- Leak-proof and vibration-resistant connections
- Corrosion-resistant materials for harsh environments
- Precision threads and ferrules for secure sealing
- Wide range of end connections and fitting styles
- Compatible with global tubing standards
Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel 304/316, Brass, Monel, Hastelloy, Inconel |
| Sizes | 1/16” to 2” & 2mm to 50mm |
| Type | Compression / Tube-to-Tube / Pipe-to-Tube / Bulkhead / Elbows / Tees / Crosses |
| Pressure Rating | Up to 6000 PSI (414 bar) |
| Thread Types | NPT / BSP / BSPT / UNF / Metric |
| Connection Ends | Male / Female / Tube End / Flare / Weld |
| Temperature Range | -50°C to +400°C |
| Standards | ASTM / ASME / DIN / ISO / SAE |
| Testing | Hydrostatic / Pneumatic / Helium Leak Test / PMI |
Physical Properties
| Property | Value | Unit |
|---|---|---|
| Density | 7.90 | g/cm³ |
| Tensile Strength | 515 – 750 | MPa |
| Yield Strength | 205 – 450 | MPa |
| Operating Temperature | -50 to +400 | °C |
| Hardness | 150 – 250 | HB |
| Corrosion Resistance | Excellent (dependent on material grade) | - |
