Honed Tubes

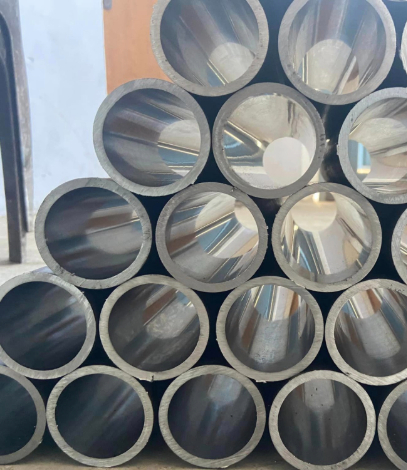

Honed Tubes are precision hydraulic cylinders used in fluid power applications. These tubes undergo a honing process that ensures exceptional surface finish and dimensional accuracy, making them ideal for pneumatic and hydraulic cylinder barrels. Manufactured from high-quality seamless steel pipes, honed tubes offer outstanding wear resistance, strength, and smooth internal surfaces for long service life and reliable performance.
- Smooth inner surface finish for improved sealing and low friction
- Excellent dimensional accuracy and roundness
- High tensile strength and fatigue resistance
- Ideal for hydraulic and pneumatic cylinder applications
- Corrosion and wear-resistant performance
Specification
| Specification | Details |
|---|---|
| Material | ST52, E355, SAE 1020, CK45, STKM13C |
| Outer Diameter | 25mm to 600mm |
| Inner Diameter | 20mm to 580mm |
| Wall Thickness | Up to 50mm |
| Length | Up to 12 meters (or custom length) |
| Surface Roughness (Ra) | 0.2 – 0.4 µm |
| Honing Tolerance | H7, H8, H9 |
| Standards | DIN 2391, EN 10305, ASTM A519 |
| Applications | Hydraulic cylinders, pneumatic cylinders, lifting equipment, and presses |
Physical Properties
| Property | Value | Unit |
|---|---|---|
| Density | 7.85 | g/cm³ |
| Tensile Strength | 600 – 850 | MPa |
| Yield Strength | 355 – 520 | MPa |
| Hardness | ≤ 250 | HB |
| Surface Roughness (Ra) | 0.2 – 0.4 | µm |
| Elongation | ≥ 20 | % |
| Impact Strength | ≥ 27 | J (at -20°C) |
