Forged Fittings

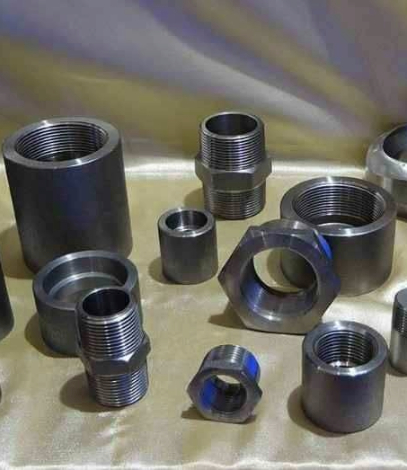

Forged Fittings are used in high-pressure piping systems to provide strong, leak-proof connections. These fittings are manufactured by forging solid steel and machining them to precise dimensions, ensuring superior mechanical strength and durability. They are widely used in industries such as oil & gas, petrochemical,
- High-pressure and high-temperature performance
- Manufactured from solid bar stock for enhanced strength
- Leak-proof and corrosion-resistant design
- Available in socket weld and threaded end connections
- Compliant with global piping standards (ASME, MSS)
Specification
| Specification | Details |
|---|---|
| Material | Stainless Steel (304, 316), Carbon Steel (A105), Alloy Steel, Duplex, Inconel, Monel |
| Types | Elbows (90°, 45°), Tees, Couplings, Unions, Crosses, Caps, Reducers, Nipples, Inserts |
| Pressure Rating | Class 2000, 3000, 6000, 9000 |
| Connection Type | Socket Weld, Threaded (BSP/NPT) |
| Size Range | 1/8" to 4" (DN6 to DN100) |
| Standards | ASME B16.11, MSS SP-79, SP-83, SP-97, BS 3799 |
| Thread Standards | ANSI/ASME B1.20.1 (NPT), ISO 7/1 (BSP) |
| Applications | Oil & Gas, Chemical Plants, Refineries, Power Plants, High-pressure Lines |
Physical Properties
| Property | Typical Value | Unit |
|---|---|---|
| Density | 7.85 (Carbon Steel), 8.0 (SS316) | g/cm³ |
| Tensile Strength | 450 – 700 | MPa |
| Yield Strength | 250 – 450 | MPa |
| Hardness | 120 – 220 | HB |
| Operating Temperature | -50 to +600 | °C |
| Corrosion Resistance | High (Stainless and Alloy Grades) | - |
