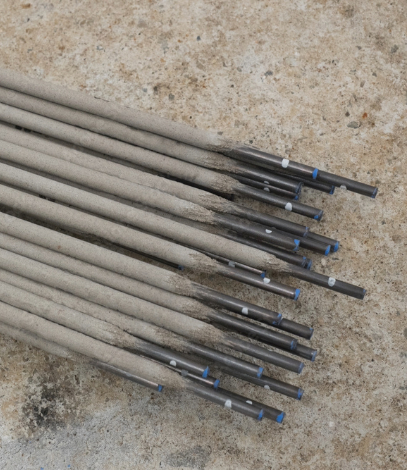

Welding Electrode
Welding Electrodes are critical consumables used in arc welding processes to join metals. We offer a wide range of electrodes designed for various base metals, welding positions, and environmental conditions. Manufactured with high-quality flux coating and core wire, our electrodes ensure stable arc performance, deep penetration, minimal spatter, and strong weld joints. Suitable for structural, pipeline, pressure vessel, and general fabrication work.
- Stable arc and low spatter for clean welds
- Excellent mechanical properties and crack resistance
- Compatible with AC and DC power sources
- Available for all welding positions
- Moisture-resistant packaging for extended shelf life
Specification
| Specification | Details |
|---|---|
| Types | Mild Steel Electrodes (E6013, E7018), Stainless Steel Electrodes (E308L, E316L), Low Hydrogen, Hardfacing, Cast Iron, Dissimilar Metal |
| Core Wire Material | Carbon Steel, Stainless Steel, Cast Iron |
| Coating Type | Rutile, Basic, Cellulosic, Acid |
| Diameter | 2.0mm, 2.5mm, 3.15mm, 4.0mm, 5.0mm |
| Length | 250mm to 450mm |
| Welding Position | Flat, Horizontal, Vertical, Overhead, All Position |
| Standards | AWS A5.1, A5.4, A5.5, DIN, IS, BS |
| Packaging | 2.5kg/box, 5kg/box, 20kg/carton (vacuum or moisture-proof) |
| Applications | Steel structures, pipelines, shipbuilding, pressure vessels, repair welding |
Physical Properties
| Property | Typical Value | Unit |
|---|---|---|
| Tensile Strength | 500 – 620 | MPa |
| Yield Strength | 400 – 480 | MPa |
| Elongation | 20 – 30 | % |
| Impact Strength | ≥ 47J at -20°C | Joules |
| Deposition Efficiency | 80 – 90 | % |
| Hardness (for Hardfacing) | Up to 60 | HRC |
